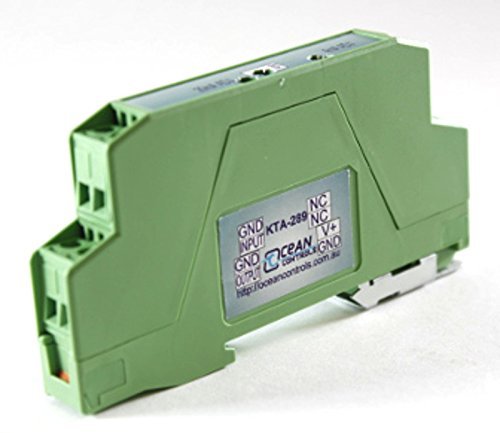

Description: The KTA-289 is an easily configured non-isolated voltage signal to 4-20mA signal converter. It can convert voltage signal ranges from below 0 - 0.1V to above 0 - 30V into a 4-20mA Output Signal. Configuration is carried out using the switch and two trimpots at the top. If the voltage signal is below 2.3V the switch is set to amplify. If the Voltage signal range is above 0-4.9V the switch is set to divide. The two trimpots are then adjusted for the 4mA and 20mA output as per the instructions in the manual. When ordering let us know the range you require and we will configure the converter for you at no extra cost. Features: 4 to 20mA Output Signal Input Range is Adjustable to Divide or Amplify the Voltage Input Signal Divide Mode Input Range: from 0-4.9V up to 0-30V. Amplify Mode Input Range: from 0-0.1V up to 0-2.3V. Download documentation here: http://www.electronics123.net/amazon/datasheet/KTA-289_Manual.pdf

The KTA-289 is an easily configured non-isolated voltage signal to 4-20mA signal converter.

It can convert voltage signal ranges from below 0 - 0.1V to above 0 - 30V into a 4-20mA Output Signal.

Configuration is carried out using the switch and two trimpots at the top. If the voltage signal is below 2.3V the switch is set to amplify. If the Voltage signal range is above 0-4.9V the switch is set to divide.

The two trimpots are then adjusted for the 4mA and 20mA output as per the instructions in the manual.

Skill Level : Assembled and Tested
